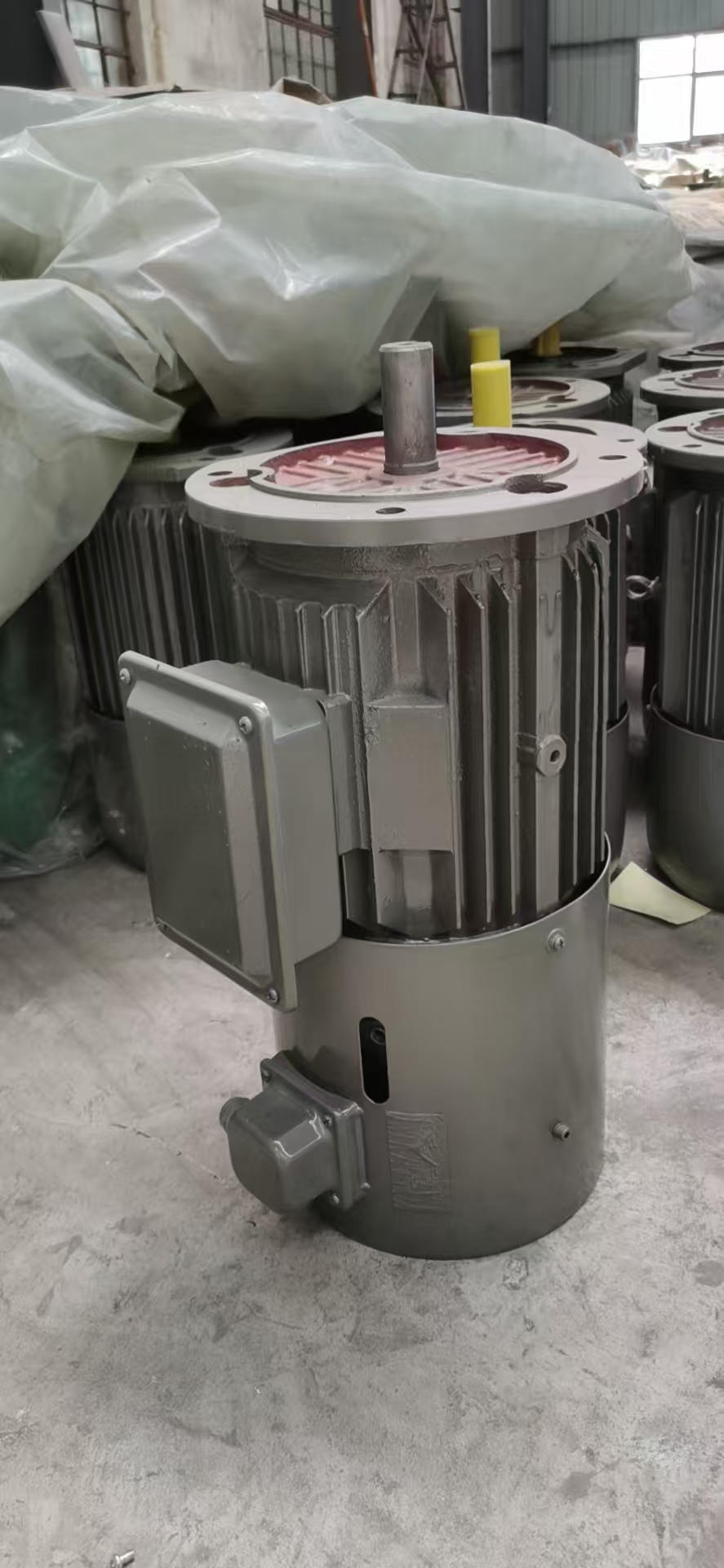

YVPEJ通常是指變頻調速電磁制動三相異步電動機，并非超頻電磁軟啟動電機。以下是對YVPEJ電機的介紹：

- 結構組成：YVPEJ系列電機是由YVF2系列變頻調速電動機與電磁制動器組合而成，是全封閉自扇冷式鼠籠型具有附加圓盤型直流制動器的三相異步電動機。此外，制動器還具有人工釋放機構。

- 工作原理：當制動線圈接通直流電源后，由于電磁力作用，電磁鐵吸引銜鐵，并壓縮彈簧，使制動盤與銜鐵和電機端蓋的摩擦面脫開，電機即可正常運轉。當制動器線圈的直流電源切斷后，電磁鐵失去電磁吸引，彈簧把銜鐵推出壓緊制動盤，制動盤受到銜鐵和電機端蓋的兩個摩擦力矩作用，迅速剎住電機轉軸，使電機停止轉動。

- 性能特點

- 調速范圍廣：電機調速范圍為5（3）-100Hz為無級調速，5（3）-50Hz為恒轉矩調速，50-100Hz為恒功率調速，在矢量控制的條件下，調速范圍還可以擴大。

- 快速制動：能實現電機失電后快速制動，快速制動時間YVPEJ-63-100電機小于0.2s，YVPEJ-112-132電機小于0.25s，YVPEJ-160-250電機小于0.5s。

- 過載能力強：電機能承受額定轉矩的160%過載，歷時1分鐘。

- 低速性能好：低速時轉矩平滑，無爬行現象。

- 冷卻效果好：電機采用了獨特的冷卻結構，使用特殊加長的軸流風機，保證了電機在低頻恒轉矩長期運行時溫升不超過允許值。

- 應用領域：適用于機械、礦山、冶金、紡織、印染、化工、農機等需要無級變速又需要快速停機、準確定位的設備，可代替機械傳動中的無級變速機。

YVPEJ usually refers to a three-phase asynchronous motor with variable frequency speed regulation and electromagnetic braking, not an overclocking electromagnetic soft start motor. The following is an introduction to the YVPEJ motor:

-Structure composition: The YVPEJ series motor is composed of the YVF2 series variable frequency speed control motor and electromagnetic brake. It is a fully enclosed self fan cooled squirrel cage type three-phase asynchronous motor with an additional disc type DC brake. In addition, the brake also has a manual release mechanism.

-Working principle: When the brake coil is connected to the DC power supply, due to the electromagnetic force, the electromagnet attracts the armature and compresses the spring, causing the friction surface between the brake disc and the armature and the motor end cover to detach, and the motor can operate normally. When the DC power supply to the brake coil is cut off, the electromagnet loses its electromagnetic attraction, and the spring pushes the armature out to press the brake disc. The brake disc is subjected to two frictional torques from the armature and the motor end cover, quickly stopping the motor shaft and stopping the motor rotation.

-Performance characteristics

-Wide speed regulation range: The motor speed regulation range is 5 (3) -100Hz for stepless speed regulation, 5 (3) -50Hz for constant torque speed regulation, and 50-100Hz for constant power speed regulation. Under vector control conditions, the speed regulation range can also be expanded.

-Fast braking: It can achieve fast braking after the motor loses power. The fast braking time for YVPEJ-63-100 motor is less than 0.2 seconds, YVPEJ-112-132 motor is less than 0.25 seconds, and YVPEJ-160-250 motor is less than 0.5 seconds.

-Strong overload capacity: The motor can withstand an overload of 160% of the rated torque for 1 minute.

-Good low-speed performance: Smooth torque and no crawling phenomenon at low speeds.

-Good cooling effect: The motor adopts a unique cooling structure and uses a specially extended axial flow fan to ensure that the temperature rise of the motor does not exceed the allowable value during long-term low-frequency constant torque operation.

-Application areas: Suitable for equipment such as machinery, mining, metallurgy, textile, printing and dyeing, chemical industry, agricultural machinery, etc. that require continuously variable speed, rapid shutdown, and accurate positioning. It can replace the continuously variable transmission in mechanical transmission.
